GenSet  |  SKU: GEN-300DY

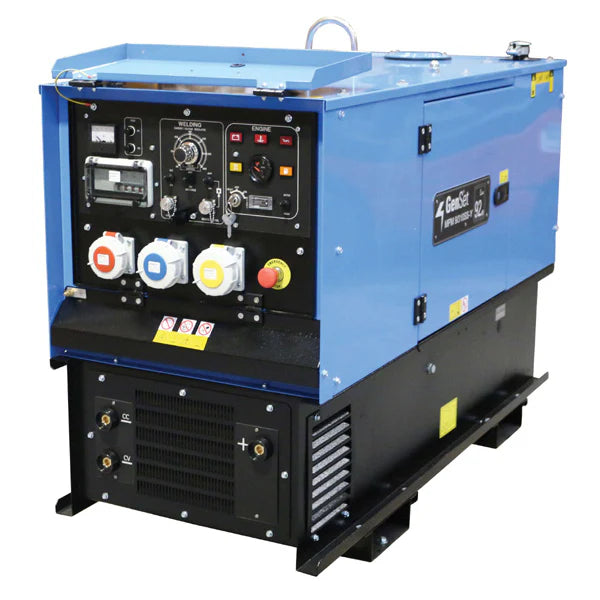

GenSet MPM 9/310 SS-Y Static Diesel Welder Generator

€15,206.95
Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer FREE delivery to anywhere in the Republic of Ireland or Northern Ireland on orders over the value of €100.

On orders below €100 there will be a delivery charge of €6.95.*

Items Marked Bulky will require a pallet and will incur a charge of €70+VAT

Orders are processed Monday to Friday and you should receive your order next day if received before 2 pm or within 2-5 working days if received after the cut-off.

Description

GenSet MPM 9/310 SS-Y Static Diesel Welder Generator

The GenSet MPM 9/310 SS-Y Static Diesel Welder Generator features an auto engine protection shutdown system, arc force control switch, and remove control socket for reliable welding performance. With a max power of 19.4 hp, 3000 rpm and 48V output, this generator offers reliable and efficient power at a low 92 lwa noise level.

  • Arc Force Control switch
  • Remote control socket
  • Auto engine protection shutdown system with warning lights for:
    - Battery charger failure
    - Low fuel level
    - Low oil pressure
    - High water temperature
  • Automatic idle device when no load is connected
  • 12V battery
  • Fuel level gauge
  • Hourmeter
  • Voltmeter
  • Emergency stop button
  • Power output protection
  • 1 x 16A 400V three-phase EEC socket
  • 1 x 32A 230V single-phase EEC socket
  • Engine oil drain pipe
  • Central lifting eye
  • Bunded base to retain all liquids
  • Two Year Warranty
  • Made in Italy


Description

GenSet MPM 9/310 SS-Y Static Diesel Welder Generator

The GenSet MPM 9/310 SS-Y Static Diesel Welder Generator features an auto engine protection shutdown system, arc force control switch, and remove control socket for reliable welding performance. With a max power of 19.4 hp, 3000 rpm and 48V output, this generator offers reliable and efficient power at a low 92 lwa noise level.

  • Arc Force Control switch
  • Remote control socket
  • Auto engine protection shutdown system with warning lights for:
    - Battery charger failure
    - Low fuel level
    - Low oil pressure
    - High water temperature
  • Automatic idle device when no load is connected
  • 12V battery
  • Fuel level gauge
  • Hourmeter
  • Voltmeter
  • Emergency stop button
  • Power output protection
  • 1 x 16A 400V three-phase EEC socket
  • 1 x 32A 230V single-phase EEC socket
  • Engine oil drain pipe
  • Central lifting eye
  • Bunded base to retain all liquids
  • Two Year Warranty
  • Made in Italy

Specifications

  • DC Welding
  • Duty Cycle @ 35%: 300A-32V
  • Duty Cycle @ 60%: 270A-31V
  • Stepless Control: 30A-300A
  • Open Circuit Voltage: 70V
  • Max Welding Rod: 6mm
  • AC Generator - 50Hz
  • Type: Asynchronous, Self Excited & Self-Protected
  • Three-Phase Power (max): 8.0kVA-400V
  • Single-Phase Power (max): 2.7kVA-230V
  • Single-Phase Power (max): 13kVA-110V
  • Power Factor: cos 0.8
  • Diesel Engine - 3000 rpm
  • Yanmar 3TNM72 - 3 cylinders - 904cm3
  • Max Power: 19.4HP (14.4kW/m)
  • Starting System: Electric (12VDC)
  • Cooling System: Water
  • Fuel Tank Capacity: 50 litres
  • Fuel Consumption @ 75%: 5.1litres/hour
  • Compliance Data
  • Noise Level: 92 LWA
  • Insulation Class: H
  • Ambient Temperature: 40°C
  • Altitude: 1000m
  • Mechanical Protection: IP23
  • Dimensions (l x w x h): 1530 x 683 x 1142mm
  • Dry Weight: 475kg
