TREND  |  SKU: TREHJIGA

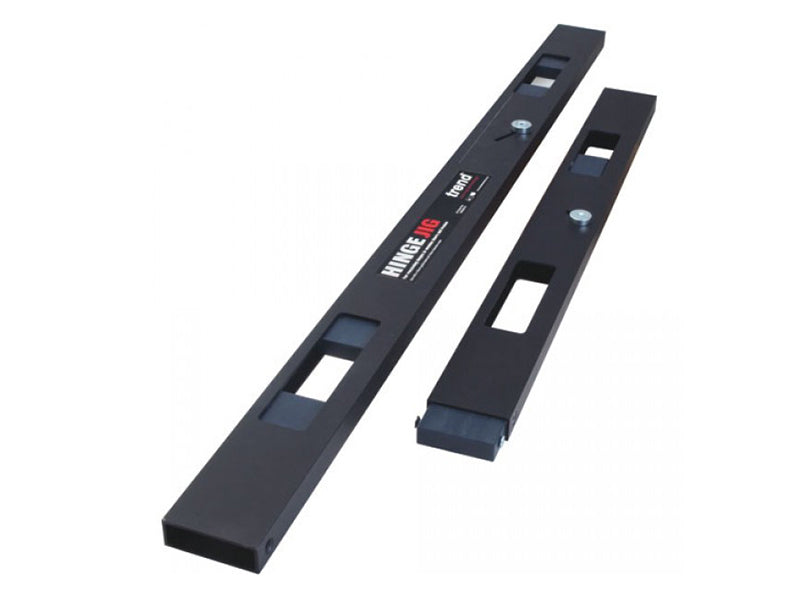

Trend 2 Part Hinge Jig H/JIG/A

€338.95
Tax included Shipping calculated at checkout.

Delivery and Shipping

We offer FREE delivery to anywhere in the Republic of Ireland or Northern Ireland on orders over the value of €100.

On orders below €100 there will be a delivery charge of €6.95.*

Items Marked Bulky will require a pallet and will incur a charge of €70+VAT

Orders are processed Monday to Friday and you should receive your order next day if received before 2 pm or within 2-5 working days if received after the cut-off.

Description

A 2-part hinge jig, portable template set designed for recessing hinges in wooden doors and frames.
It is easy-to-use with minimal setting-up time, completing the job both accurately and quickly.
Used on-site and in joinery shops to increase productivity with excellent results.
Four apertures for fire door requirements.
No need for marking out in the conventional way.
Quick and simple to set-up as the hinge is used as the pattern.
Clean and accurate recesses are achieved every time. Suitable for timber based doors and square butt hinges.
Use with a light-duty router with 1/4 inch collet.
Long reach router cutter required, 12 mm diameter with 70 mm overall length.
Angled position slots to prevent creep.

Hinge sizes possible:
Length min: 2 5/8 in (67 mm).
Length max :5 in (127 mm).
Width min :3/8 in (9.5 mm).
Width max: 1 3/8 in (35 mm).
Door sizes possible:
Height min: 6 ft 5 in (1955 mm).
Height max: 6 ft 10 in (2100 mm).
Thickness min: 5/8 in (16 mm).
