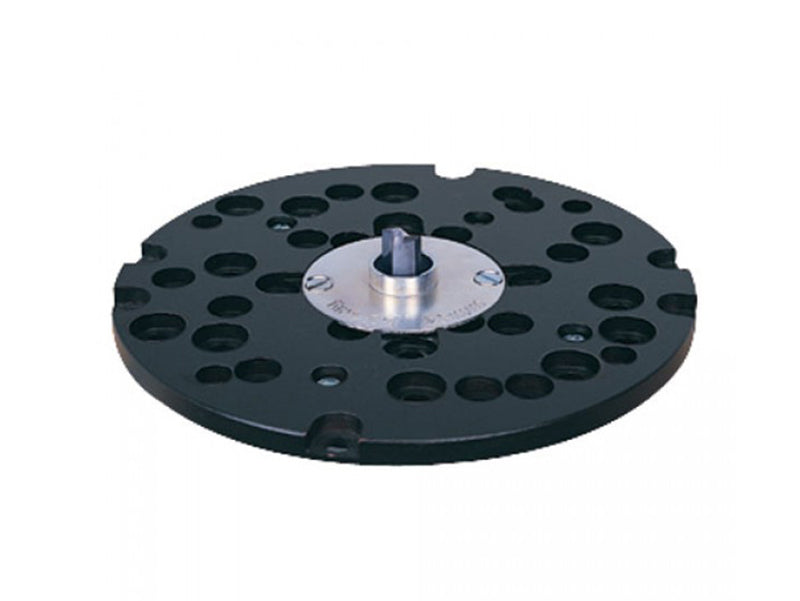

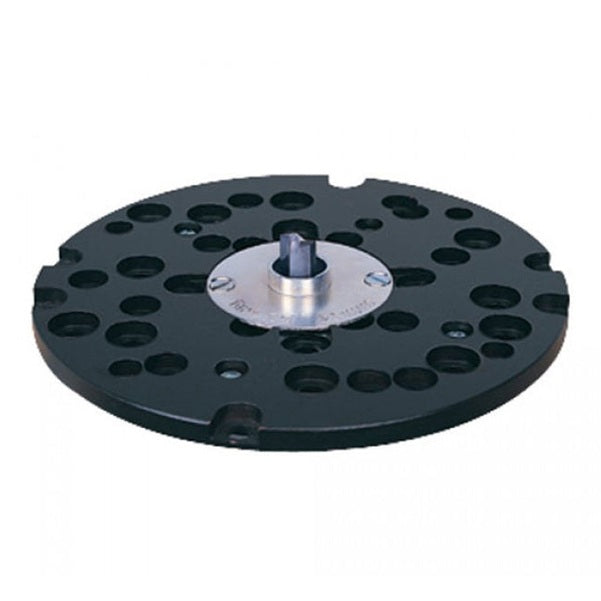

Trend Universal Sub Base C/w Pins & Bush
Trend Universal Sub Base C/w Pins & Bush is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We offer FREE delivery to anywhere in the Republic of Ireland or Northern Ireland on orders over the value of €100.
On orders below €100 there will be a delivery charge of €6.95.*
Items Marked Bulky will require a pallet and will incur a charge of €70+VAT
Orders are processed Monday to Friday and you should receive your order next day if received before 2 pm or within 2-5 working days if received after the cut-off.
Description
Description
The Unibase enables routers with non-standard guide bush fittings to accept the range of Trend guide bushes. Will fit directly to most routers.
Line-up pin used with a 16 mm plastic bush to ensure concentricity of the cutter to the guide bush when fitting the sub-base. Suits collet sizes 1/4inch, 8mm, 12 mm and 1/2inch.
Instructions for fitting
The line-up pin fit into the collet and is plunged through the router base. The line-up bush is fitted into the Unibase and secured. This is then placed over the line-up pin and rotated in order to line up the fixing holes. The Unibase screws are tightened and then the line-up bush can be replaced with any choice of Trend guide bushes. These range from 10 mm up to 30 mm (GB10 - GB32). For larger diameter cutters a 40 mm guide bush (GB40) is available.
